ICOM IC-9700 ALL MODE TRANSCEIVER – جهاز إرسال واستقبال هواة لاسلكي ثلاثي النطاق

Get the Icom IC-9700, a professional All Mode amateur radio transceiver covering 2m / 70cm / 23cm (144 / 430-440 / 1200 MHz). Featuring advanced receiver technology, built-in Satellite Mode, and D-STAR (DV/DD) support for precise, crystal-clear communication for weak-signal and satellite operation.

Key Features

• 🔹 Tri-Band Coverage: 144 + 430/440 + 1200 MHz (2m / 70cm / 23cm)
• 🔹 All Mode Operation: SSB / CW / RTTY / AM / FM + D-STAR (DV & DD)
• 🔹 High Output Power:
• Up to 100W on 144MHz
• Up to 75W on 430/440MHz
• Up to 10W on 1200MHz
• 🔹 4.3” Color Touch Screen for intuitive control
• 🔹 Built-in Satellite Mode with preset memories
• 🔹 Three Independent Antenna Connectors
• 🔹 SD Card Audio Recording & Playback (config-dependent)

Technical Specifications

Frequency Coverage

• 144.000 – 148.000 MHz
• 430.000 – 450.000 MHz
• 1240.000 – 1300.000 MHz

Modes

SSB / CW / RTTY / AM / FM / DV / DD

RF Output Power

• 144MHz: 0.5 – 100W
• 430/440MHz: 0.5 – 75W
• 1200MHz: 0.1 – 10W

Display

4.3” TFT Color Touch Screen

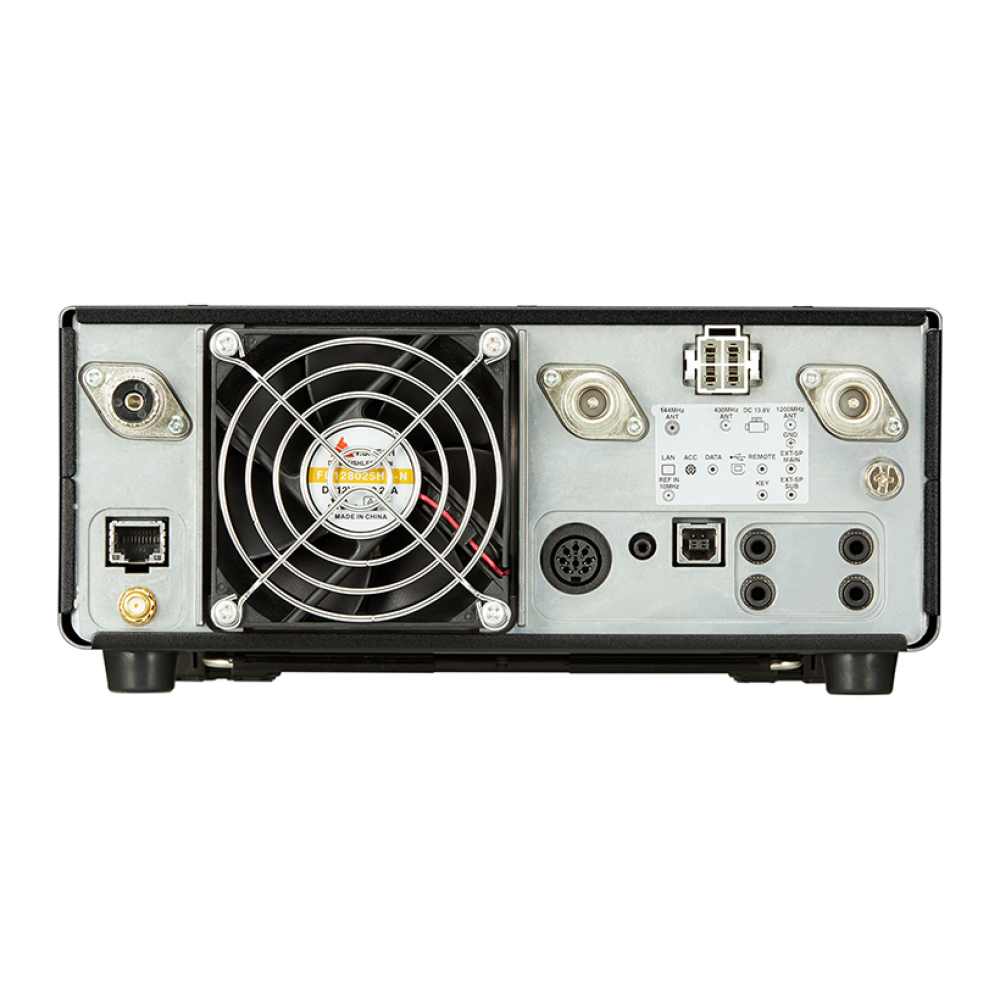

Antenna Connectors

• 144MHz: SO-239 (50Ω)
• 430/440 & 1200MHz: Type-N (50Ω)

Power Supply

13.8V DC ±15% (Negative Ground)

Dimensions & Weight

• 240 × 94 × 238 mm
• 4.7 kg

In the Box

✔️ Icom IC-9700 Transceiver

✔️ HM-219 Hand Microphone

✔️ DC Power Cable

Note: Antenna not included.
